Our company introduced high-precision delay body production technology and equipment from Belgium, and passed the scientific and technological achievements appraisal organized by the Ministry of Industry and Information Technology in January 2018, and its manufacturing technology and special equipment filled the domestic gap, and was at the leading domestic and international advanced level.

The production equipment is mainly composed of delayed pipe punching machine and delayed body filling unit. The products produced can not only meet the high-precision delayed series products, but also can be used for ordinary delayed series products such as millisecond, half second and second.

One, 713 horizontal punching machine

Delayed tube raw materials are imported from Germany aluminum magnesium alloy wire, after cutting, twice stamping, three times extrusion, perforation, detection and correction output, the production speed can reach 160 times/min, can meet the 10, 20, 25, 30mm and other different length specifications of delayed tube production. High dimensional accuracy, error less than 0.02mm.

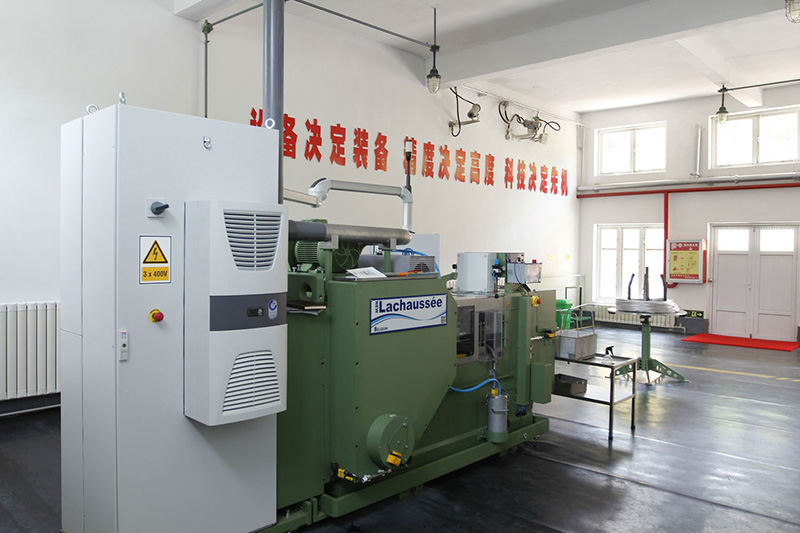

(Type 713 Horizontal punching Machine)

Two, 230 type rotary disc delay body filling machine

Using 24-station rotating disk multi-load multi-pressure (1 to 13 times adjustable) production process, the product pressure density consistency is good, supporting unique drilling technology and advanced online detection technology, the height error of the drug column is less than 0.1mm, with online float adsorption and mold cleaning functions, good intrinsic safety, production efficiency up to 9000 rounds/hour.

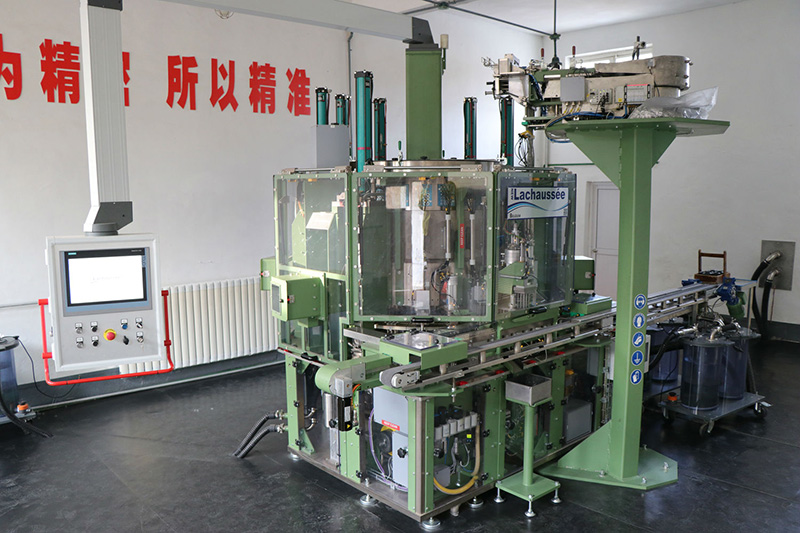

(230 type rotary disc delay body loader)

Third, product advantages

1, high delay precision, good reliability;

2, the outer diameter of the extension body is adjustable, and the compatibility of different inner diameter tubes and shells is good;

3, the extension body uses non-heavy metal materials, green environmental protection;

4, delay body to the factory without secondary processing, can be directly assembled detonator, easy to use.
